FBG Strain Sensor

Alxenses’s FBG strain sensors (ALMSS01 / ALESS01) makes use of the sensitivity of fiber grating to measure the strain. The FBG is fixed inside a ruggedized stainless steel housing between two anchoring points. The housing consists of a sliding mechanism that allows both ends to move freely relative to each other.

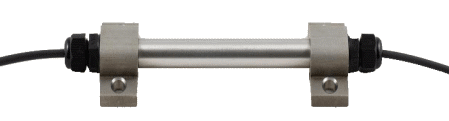

FBG MOUNTABLE STRAIN SENSOR - ALMSS01

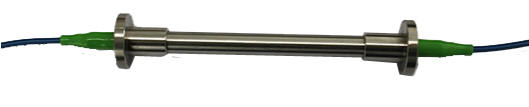

FBG EMBEDDED STRAIN SENSOR - ALESS01

Features:

  • Robust and high reliability
  • Monitoring of compression as well as tension possible
  • Watertight and capable of service in harsh environment

  • Applications:

    The mountable strain sensor can be applied to monitor strain changes in various structures.


FBG Strain Sensor Specifications

(Mountable / Embeddable) FBG Strain Sensor

P/N: ALMSS01 / ALESS01

Parameters Values Units DataSheet
Wavelength Range 1510~1590 nm
Strain Measurement Range +/-1500 με
Accuracy 1% --
Distance Between Anchoring Points 70 mm
Temperature Range -5 ~ +80 °C
Housing Diameter 8 mm
Pigtail Type Amoured or Jumper Cable --
Connector Type FC/APC --

Note:

The sensor accuracy does not contain error sources originating from the read-out equipment.


*Alxenses Company Limited reserves the right to make changes to the products described herein without notice.
