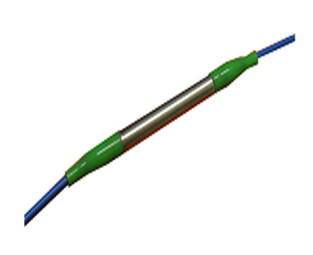

FBG Temperature Sensor (P/N: ALTS04)
Alxenses's ALTS04 FBG Temperature sensors measure temperature by utilizing the inherent feature of heat-sensitivity of FBG. The packaging is specially designed to make temperature measurement free from the influence of pressure, strain etc.
Features:
- High temperature sensitivity
- High stability and reliability
- Stable performance in extreme environment
- Resistant to electromagnetic interference
- Ease of multiplexing for multi-point measurement
FBG Temperature Sensor Specifications
FBG Temperature Sensor
P/N: ALTS04 |
Parameters |
Values |
Units |
DataSheet |
Wavelength Range |
1525~1565 |
nm |
|
Temperature Resolution |
0.1 |
°C |
Temperature Accuracy |
1 |
°C |
Temperature Range |
-20~80 |
°C |
Cable Type |
Ф3 or armored cable |
mm |
Cable Length |
customized |
mm |
Connector Type |
FC/APC or customized |
-- |
Dimension |
100×Ф8 |
mm |
Note:
The reported resolution and accuracy values assume the use of a measurement unit with a resolution better than 1pm and a relative wavelength accuracy better than 10pm.
*Alxenses Company Limited reserves the right to make changes to the products described herein without notice.
