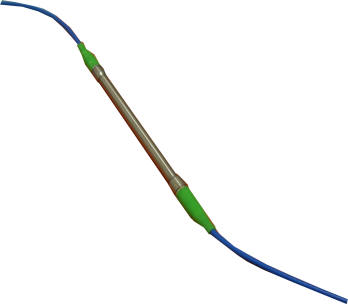

FBG Temperature Sensor (P/N: ALTS07)

Alxenses’s ALTS07 FBG Temperture sensors measure temperature by utilizing the inherent feature of temperature-sensitivity of FBG which is packaged specially to further increase the sensor’s heat-sensitivity. With excellent waterproof, stability and reliability, ALTS07 sensors can be embedded in concrete construction to monitor temperature variation. These sensors can be multiplexed easily to form an effective sensing network.


  • High temperature sensitivity
  • High stability and reliability
  • Waterproof
  • Resistant to electromagnetic interference
  • Ease of multiplexing for multi-point measurement

FBG Temperature Sensor Specifications

FBG Temperature Sensor


Parameters Values Units DataSheet
Wavelength Range 1525~1565 nm
Temperature Resolution 0.04 °C
Temperature Accuracy 0.4 °C
Temperature Range -20~80 °C
Cable Type Ф3 or armored cable mm
Cable Length customized mm
Connector Type FC/APC or customized --
Dimension 160×Ф8 mm


The reported resolution and accuracy values assume the use of a measurement unit with a resolution better than 1pm and a relative wavelength accuracy better than 10pm.

*Alxenses Company Limited reserves the right to make changes to the products described herein without notice.
